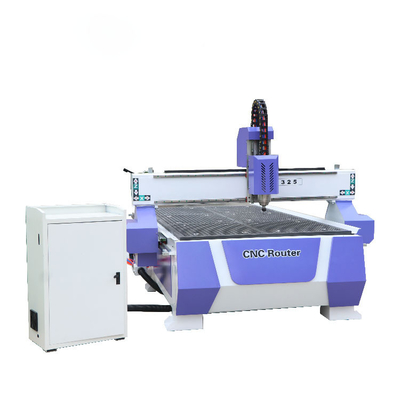

Building Material Stores China CNC Machinery Jinan MDF Furniture Carving CNC Router Woodworking Machine

1.0 set
MOQ
$3,200.00(>=1 sets)
Price
Building Material Stores China CNC Machinery Jinan MDF Furniture Carving CNC Router Woodworking Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Positioning Accuracy (mm): 0.03 Mm
Number Of Axes: 1
No. Of Spindles: Single
Working Table Size(mm): 1300×2500
Machine Type: CNC Router
Travel (X Axis)(mm): 1300 Mm
Travel (Y Axis)(mm): 2500 Mm
Repeatability (X/Y/Z) (mm): 0.03 Mm
Spindle Motor Power(kW): 3.2kw
CNC Or Not: CNC
Voltage: 380
Dimension(L*W*H): 1300*2500
Power (kW): 3.2
Weight (KG): 600
Control System Brand: NC Studio, Mach3, DSP
Warranty: 2 Years
Key Selling Points: Competitive Price
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Advertising Company
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Spindle
Working Area: 1300*2500mm
Control System: NcStudio Control System
Spindle Power: 2.2kw 3.0 Kw 4.5kw 6.0kw
Software: Ucancam / ArtCam/TYPE3
Motor And Driver: Stepper Motor Leadshine Driver
Working Table: Vacuum T-slot Table
Guide Rail: Hiwin Square Linear Guide Rail
Driving Method: X,Y Axis By Helical Gear Rack, Z Axis By TBI Ball Screw
Inverter: Fuling Inverter
Basic Infomation
Payment & Shipping Terms
Packaging Details: wooden case
Product Description
Products Description

1300*2500mm 3d Wood Engraving CNC Router Machine

1. High temperature tempering treatment, welded steel tube T type machine bed and T type gantry, high rigidity, bearing strength better.
2. Dual motor driver for Y-axis, moving stably.
3.Linear round guide rail, ensuring the higher precision and long life time.
4.China Water cooling spindle, more powerful, low noise, not easy to break cutters.
5. Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.（Taiwan Hiwin linear rail）
6. Intelligent protecting the working table, to prevent the damage by wrong operation. Also can prevent the crush caused by the design working area larger than actual working area.
7. Emergency stop button, ensuring the operation safe.
8. Good software compatibility, suitable for Type3, Artcam, Castmate, Ucanam, JDpaint, such CAD/CAM design software.
9. Break points, power off memory way, ensuring the memory function, can continue processing if cutters break or next day working.
Main Features
1. Z axis feeding height 200mm
2. Square tube welded steel frame structure-8mm thickness
3. Aluminum T-slot table 4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis Ball screw
5. X, Y, Z axis Taiwan square rails PMI
6. 450B stepper motor and MA860H Leadshine driver or servo motor and driver
7. water cooling spindle and 3.7kw Fuling inverter, other spindles are optional
8. Nc-Studio-5.4.49 control system, DSP or Mach 3 is optional
Optional parts
1,Rotary axis for engraving round wood: diameter 80mm/100mm/150mm
2,Dust collector
3,MACH3 USB control system
4,Vacuum table with 5.5kw vacuum pump
5,4.5kw/5.5KW water cooling spindle,
PRODUCT SPECIFICATIONS
Model
PRW1325wood CNC Router
Working Area
1300(X)*2500(Y)*300(Z)mm
Machine structure
welded steel tube, cast iron vertical shafts and steel gantry
Table surface
Aluminum T-slot table with PVC Or vacuum pump
Spindle
3.2KW water or air  cooling spindle
Spindle rotating speed
0-24000 rpm
Collet size
ER20
Guide rail
Taiwan Hiwin linear square guide rail
Driving method
X,Y axis by helical gear rack, Z axis by TBI ball screw
Motors and drivers
Stepper motor 450B and leadshine drivers MA860
Control system
NCStudio control system
Invert
Fuling invert
Standard software
Artcam2010
Working voltage
220V/380V Single phase /3 phase 50-60HZ
Control Cabinet
Independent
PRODUCT CONFIGURATION
Machine Photo
Sample
Factory
FAQ
1. Warranty?
Three years.

2. How do you deliver machine to me?
we deliver machines by sea, you just need to tell us which port is convenient to you.

3. I don't know how to operate this machine, what should I do?
First, machine is easy to operate, you only need to transfer your file to control panel, then you can start. Second, we provide corresponding videos and manual, too.
