Processing range: mainly used in various enamel productions such as mahogany, new Chinese, and Ming furniture.
1. It adopts imported linear guide rails, double row and four rows of ball slides, large bearing capacity and stable operation. Taiwan ball screw improves the accuracy of lower cutter. High-power air-cooled spindle motor with high-precision ceramic bearings, low noise and long life.
2. It adopts high quality imported computer numerical control system and has a good user interface. It is equipped with guards to fully protect the operator.
3. With a sawing unit, it can be cut with a saw blade, which greatly improves the processing efficiency, reduces tool wear and reduces processing costs.
4. Equipped with professional Tenon graphics library to achieve one-click processing, reduce programming difficulty and reduce scrap rate.
|
Product number |

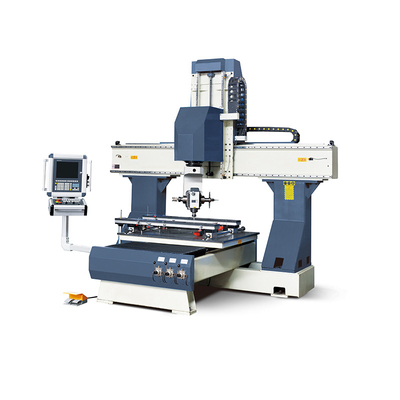

XA 5-axis machining center |
|
Processing size (X × Y × Z stroke) |
2700mm*900mm*400mm |
|
Repeatability (±mm) |
0.05/M |
|
Cutting speed (mm/min) |
5000 |
|
Maximum free speed (mm/min) |
35000 |
|
Beam to clamp working surface height (mm) |
600 |
|
Tool magazine |
4 milling cutter +1 saw blade |
|
Spindle power (kw) |
7.5KW+2.2KW |
|
Spindle speed (rpm/min) |
0-18000 |
|
Drive mode |
AC servo drive |
|
Control System |
Syntec |
|
Weight (Kg) |
6000 |
|
Processing length (mm) |
300 |
|
Processing height (um) |
150 |
|
Machine dimensions (mm) |
4900*3200*3200 |
Factory Tour
Exhibition style
CE Certificate ISO Certificate
1. We will come standard with the wearing parts.
2. We accept the 30% TT deposit, machine will be completed within 15 to 20 days delivery.
3. We have specialized technical staff to overseas service.
4. Our warranty period is one year, if you have any questions, please communicate with us promptly.
Q1:Why is our price more expensive than our peers?
Because we do is high-end products, accessories are high, the cost determines the price
Q2:How long is the shelf life of the product? What to do if something goes wrong?
Our machines are one year shelf life, if problems arise we will allow technical staff to communicate, if necessary, will be on-site service
Q3:How to cooperate with us?
At present, we already have distributors from many countries. Once we cooperate, we will establish a single trade relationship and work together to safeguard our interests.
