Machinery repair shops cnc router machine woodworking cutter machine cnc 3d wood router

1 Set
MOQ
$3,600.00(>=1 Sets)
Price
Machinery repair shops cnc router machine woodworking cutter machine cnc 3d wood router
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Range Of Spindle Speed(r.p.m): 18000 - 24000 Rpm
Positioning Accuracy (mm): 0.02 Mm Mm
No. Of Spindles: Single
Working Table Size(mm): 1300×2500
Machine Type: CNC Router
Travel (X Axis)(mm): 1300 Mm Mm
Travel (Y Axis)(mm): 2500 Mm Mm
Repeatability (X/Y/Z) (mm): 0.02 Mm Mm
Spindle Motor Power(kW): 3/4.5/5.5/6kw
CNC Or Not: CNC
Voltage: 220V/380V
Dimension(L*W*H): 3200*1840*1900mm
Weight (KG): 1150
Control System Brand: Richauto/NC Studio/March3
Warranty: 2 YEAR
Key Selling Points: High-accuracy
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Retail, Food Shop, Printing Shops, Construction Works , Advertising Company
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Spindle
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Control System: RichAuto, Weihong, Mach3 Or Optional
Spindle Power: 3.0 Water Cooling Spindle Or Optional
Working Area: 1300x2500mm OR Optional
Transmission: XY Rack Gear, Z Ballscrew
Guide Rails: Linear Guide Rails
Motors And Drivers: Leadshine Stepper Motors Or Servo Motors
Table: T-slot Table Or Vacuum Table
Gantry: Heavy And Stable Gantry
Power(W): 3.0KW
Local Service Location: Brazil, Colombia, South Africa
After Warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service
Showroom Location: Brazil, Colombia, South Africa
Marketing Type: New Product 2020
Certification: CE ISO
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: 1325 Most Popular Woodworking CNC Router Machine, CNC Cutting Router for Sale Rj-1325 will be packed by two layers. First the plastic air bubble wrap the machine, protect the Laser Cutting Machine from be scratched or other unexpected damage, the wrapped p
Supply Ability: 100 Set/Sets per Month
Product Description

Ruijie CNC router woodworking machine 1325 1530 2040 cnc wood router for mdf cutting wooden furniture door making (whatsapp/wechat:+8618315917818)

Description

PRODUCT DESCRIPTION

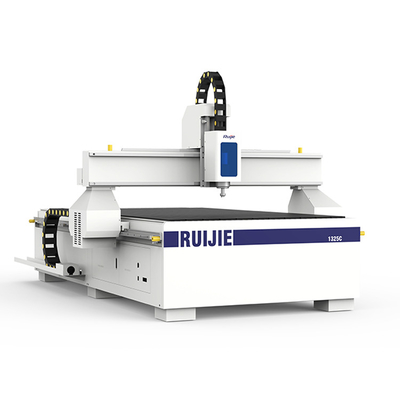

RUIJIE 1325C CNC ROUTER is equipped with Taiwan industrial level HIWIN rail and YYC rack, Japanese servo motors, which guaranteed running speed.

*High power 9.0KW spindle are effecive

*Vacuum Table help use to firm board on the table.

*Dust collector option is friendly for working environment.

*Syntec/Ncstudio Control is easy and professional for cutting and engraving work.

RUIJIE CNC

Sharing Progress Is Far from Being High!

Machine Parameter

Moel No.
RJ-1325C
RJ-1530C
RJ-2030/2040
Working Area
1300*2500*300mm
3000*1500*300m
2000*3000*300mm
table size
1350*3050mm
1550*3550mm
2050*3550mm
transmission
X,Y Axis HIWIN/PMI linear guide, Z Axis ball screw
spindle
3.0KW
table structure
Aluminium table
Max traveling Speed
Speed 60m/min
Driver and Motor
Leadshine Stepper motor
Working voltage
AC380 3PH 50HZ (option:AC220V 3PH 50HZ)
CONTROL SYSTEM
NC-studio/SYNTEC/AutoRich

1325 Most Popular Woodworking CNC Router Machine, CNC Cutting Router for Sale Rj-1325

Application

*It mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry,wood panel,wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables, panel furniture, office furniture,instrument industry, and so on.
*It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.

co2 Laser Cutting Machine

Packaging & Shipping

Packaging: CNC ROUTER will be packed by two layers. First the plastic air bubble wrap the machine, protect the Laser Cutting Machine from be scratched or other unexpected damage, the wrapped product will be packed in plywood case.

Shipping: Shenzhen, Shanghai, Qingdao, Guangzhou,etc. We accept land, air, sea transport and international multimodal transport. land, air, sea transport and international multimodal transport.

We have 20-years professional focused on laser cutting machine and service more than 150 countries and areas.

Our company has set up more than 20 sale and service departments around China which can offer our customers the service of design, fixing, training, maintenance and so on.

As the sale in China, our products exports around the world including Southeast, Middle East, Africa, European and U.S.A. We are searching the distributors around the world. Hope we can cooperate for the world market.

1.24 months quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.

2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.

5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 25-35 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
