Home /Products/Woodworking CNC Router/4x8 ft 3d working atc wood router cnc woodworking machine for mdf cutting wood furniture door making

4x8 ft 3d working atc wood router cnc woodworking machine for mdf cutting wood furniture door making

1 Set
MOQ
$6,500.00(1 - 2 Sets) $6,400.00(3 - 4 Sets) $6,200.00(>=5 Sets)
Price
4x8 ft 3d working atc wood router cnc woodworking machine for mdf cutting wood furniture door making
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Range Of Spindle Speed(r.p.m): 1 - 24000 Rpm
Positioning Accuracy (mm): 0.02 Mm
Number Of Axes: 3
No. Of Spindles: Single
Working Table Size(mm): 1300×2500
Machine Type: CNC Router
Travel (X Axis)(mm): 1300 Mm
Travel (Y Axis)(mm): 2500 Mm
Repeatability (X/Y/Z) (mm): 0.02 Mm
Spindle Motor Power(kW): 9
CNC Or Not: CNC
Voltage: 380V
Dimension(L*W*H): 3000*2150*1800mm
Weight (KG): 1000
Control System Brand: NC Studio, Siemens, Syntec, Mach3, DSP, RichAuto
Warranty: 3 Years
Key Selling Points: High Rigidity
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Driver, System, Spindle
Product Name: Cnc Router Machine
Application: Wood Working
Transmission: Taiwan TBI Ball Screw
Working Area: 1300x2500mm
Model: 1325 Router Machine
After-sales Service Provided: Video Technical Support
After Warranty Service: Video Technical Support
Function: Cutting Engraving Carving Milling
Keywords: Cnc Wood Router Engraver
Control System: Taiwan LNC Control System
Basic Infomation
Model Number: 1325 Router Machine
Payment & Shipping Terms
Packaging Details: 1.Outside package :Standard export plywood case for CNC Router for advertising 2.Inner package:Stretch film and and plastic film for humidity.
Supply Ability: 100 Set/Sets per Month
Product Description
Company Introduction
Jinan Mingshi machinery Equipment Co., Ltd
Our company established in 2010, we have 11 years experience in CNC and Industrial laser equipment integrating R&D, design, sales and production.
We have CE and SGS certification, u-nits that value quality and keep promises.
We have CNC router, wood router, fiber laser cutting machine and industrial laser equipment.
Team
We have profession technical and sale man, participates in more than 50 large-scale industrial exhibitio-ns at home and abroad, showing machines to more than 30,000 potential customers.
Factory
Our factory covers an area of 10000 square meters and has modern workshop. There are about 100 pr-oduction technical personnel and more than 15 research personnel.
Product Show
Technical Parameters
Machine Type
1325 Single Head Woodworking Machine
Table Size
1300*2500mm
Countertop Structure
Aluminum Profile Counter Top
Work Plan
1300*2500*200mm
Bed Structure
Welded Steel
XYZ Transmission
XY Helical Rack Drive, Z Screw Drive
Guide
20 Square Rail
Maximum Empty Travel Speed
17000mm/min
Working Speed
15000mm/min
Spindle Power
3.2 kw JST Water Cooling
Spindle Speed
0-24000rmp
Motor
Leadshine 860
Operating Voltage
AC220V/380V, 50HZ
Run Command
G Code
Operating System
DSP/NC Studio
Distribution Cabinet
Independent Cabinet
Support Software
Type 3,Artcam,JD
Assist
Dust Hood, Dust Tube
Detailed Images

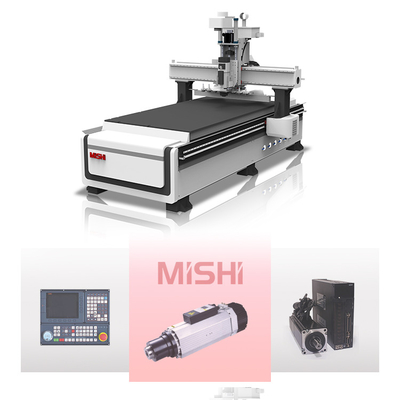

Product Photograph
(1)Machine body design with high strength and double driving motors of Y axis, which have more reaso-nable design, fast processing speed, easy-operated maintenance and low fault rate. (2)Advanced CNC processing system has powerful functions and humanized operation, as well as can r-eceive data through U disk or network. (3)Imported and high precise linear guide ways have features such as stable operation, high precision a-nd steady support, which prolong service life of machines. (4)Z axis adopts imported ball screw with industrial level can positioning accurately and make processing effects more perfect. (5)Energy-saving vacuum absorption table function and dust collectors can protect the environment. (6)Software has good compatibility. The machine can be compatible with various CAD/CAM design & m-aking software such as TYPE3, Artcam, JD, Artcut, UG, MasterCAM, PowerMill and So on.
Application
Woodworking
Processing of various furniture such as door, window, cabinet, craft wood door, screen, etc.
Advertisement
Engraving and cutting various labels and number plate.
Art craft
Engraving characters of any languages and graphics on gifts and souvenirs. Balustrade, furniture legs stair railing, cylinder items, handrail, desk or chair legs, the human body, avatar, 3D cylinder mold, and a variety of rotational symmetry.
Applicable materials
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
After sales Services
Mingshi CNC team can provide 24/7 online service, free technical support. We have professional Pre-sales and after sales service. Mingshi CNC team can provide oversea service all over the world.
Shipping and Packaging
Q: How to install and maintain the machine?
A: Before you use it, we will send the operation tutorial and installation operation video with English ver-sion to you. If you still can not operate, we will provide video guidance online.
Q: What are the machine working environment requirements?
A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: How many days does the goods ready to ship?
A: The specific delivery date needs to be communicated with the sales. If we have stock, it can be ship-ped within five days. If it is not in stock, it will take 15 to 20 days to prepare goods. By the way, Most of the machines are in stock.
Q: What is the mode of transportation of the products?
A: The specific transportation method can be selected according to the needs, like by sea, by air or by tr-ain. Our trade terms is mostly centred on FOB, but we offer EXW, CIF, depending on which is more con-venient for you.
