Condition:
New
Range Of Spindle Speed(r.p.m):
23000 - 24000 Rpm
Positioning Accuracy (mm):
0.02 Mm
No. Of Spindles:
Four
Working Table Size(mm):
1300×2500

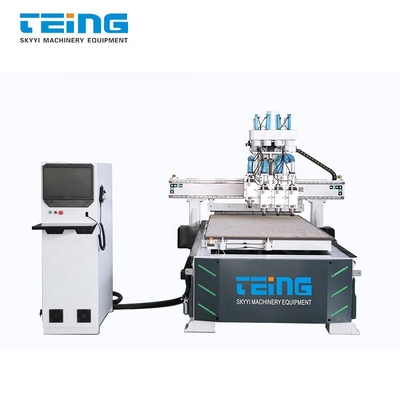

Machine Type:
CNC Router
Travel (X Axis)(mm):
1300 Mm
Travel (Y Axis)(mm):
2500 Mm
Repeatability (X/Y/Z) (mm):
0.02 Mm
Spindle Motor Power(kW):
6kw
CNC Or Not:
CNC
Voltage:
AC 380V/220V Or Customization
Dimension(L*W*H):
3500*2300*1850
Power (kW):
24
Weight (KG):
2400
Control System Brand:
NC Studio, Syntec
Warranty:
12 Month
Key Selling Points:
High-accuracy
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
2 Years
Core Components:
Motor
Bed Frame:
Heavy-duty Thickening 3.4 Meter CNC Router Body
Fuselage Structure:
Side-hanging Gantry Structure
Rack:
High Precision 1.5 Grinding Helical Rack
Guide:
25MM HIWIN Linear Guide
Oiling:
Rail Automatic Oil Lubrication System
Spindle Speed:
0-18000rpm
Positioning Cylinder:
X Axis Two,Y Axis Three
Limit:
Three-axis Induction Limit
Push:
Automatic
Knife:
One-button Tool Setting With Automatic Tool Setting
Local Service Location:
Egypt, Viet Nam, South Africa, Nigeria
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Showroom Location:
Egypt, Viet Nam, South Africa, Nigeria
Marketing Type:
New Product 2020
Certification:
CE/ISO
