Home /Products/CNC Machine Center/Metal Machining LEYO vmc CNC Machining Center CNC Vertical Milling Machining Center

Metal Machining LEYO vmc CNC Machining Center CNC Vertical Milling Machining Center

1 Set
MOQ
$50,769.00(>=1 Sets)
Price
Metal Machining LEYO vmc CNC Machining Center CNC Vertical Milling Machining Center
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Spindle Taper: NT40
No. Of Spindles: Single
Type: VERTICAL
Dimension(L*W*H): 1200*700*600
Weight (T): 8 T
Table Size (mm): 1100*600
CNC Control System: FANUC, MITSUBISHI, Siemens, SYNTEC
Number Of Axes: 3, 4, 5
Table Travel (X) (mm): 1000
Table Travel (Y) (mm): 600
Table Travel (Z) (mm): 600
Positioning Accuracy (mm): ±0.008
Repeatability (X/Y/Z) (mm): ±0.008
Range Of Spindle Speed(r.p.m): 1 - 12000 R.p.m
Spindle Motor Power(kW): 11
Max. Table Load(kg): 800 Kg
Feed Speed(mm/min): 1 - 20 Mm/min
Rapid Feed Speed(m/min): 36
Min. Time Of Tool Change(s): 2
Tool Magazine Capacity: 24
Key Selling Points: High-accuracy
Warranty: 1 Year
Voltage: 380V
Applicable Industries: Consumer Electronics, Automobiles And Locomotives, Instruments And Meters, Electronic And Electrical Appliances, Aerospace And Machinery Manufacturing Industries
Showroom Location: Egypt, Canada, Turkey, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Morocco, Kenya, South Korea, Chile, UAE, Algeria, Sri Lanka, Kazakhstan, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Other
Product Name: CNC Machining Center VMC1060
Product Type: Cnc 3/4/5 Axis Machine
Machine Name: VMC1060 CNC Vertical Machining Center
Machine Type: VMC1060 CNC Vertical Machining Center
Keywords: Vmc Machine Center
Material: HT300 Cast Iron
Application: Metal Machining
Function: Metal Drilling Tapping Milling
Processing Type: Metal Material
Processing: Metal Vertical Milling Machine
Basic Infomation
Payment & Shipping Terms
Packaging Details: wooden case
Supply Ability: 30 Set/Sets per Month
Product Description
Specification

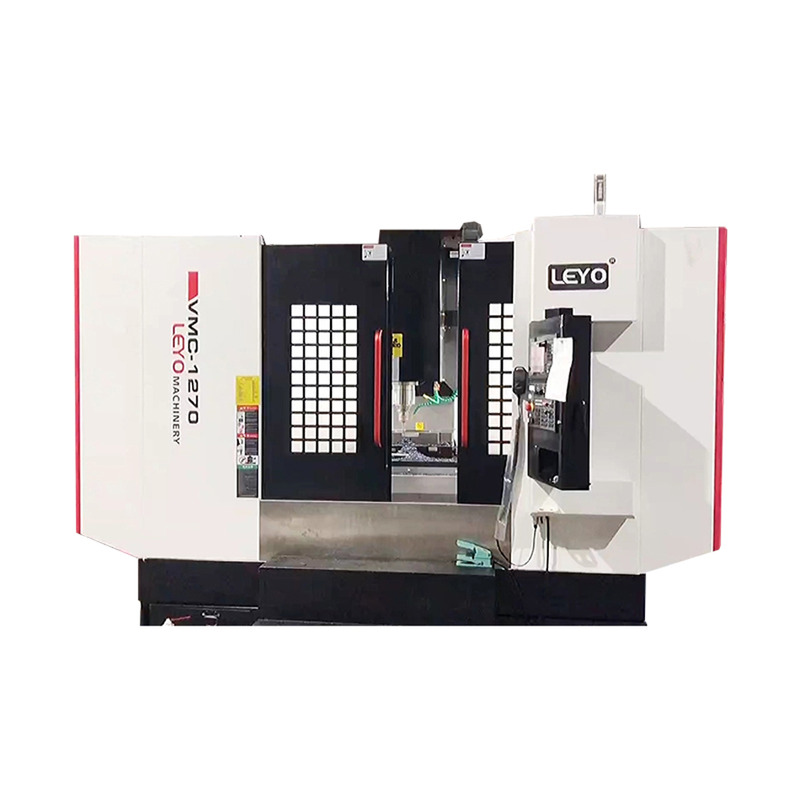

LEYO VMC1270 series
Model
Unit
VMC1270
VMC1270Z
X/Y/Z axis travel
mm
1200*700*600
X/Y/Z maximum moving speed
m/min
24
X/Y/Z maximum cutting feed rate
m/min
18
Spindle speed
rpm
8000/10000/12000/15000
X/Y/Z axis motor
kw
4.5kw with brake
Spindle motor power
kw
15/18.5
Spindle taper hole
BT40/BT50
Positioning/Re-positioning accuracy
mm
±0.008mm
Table size (L x W)
mm
1360*700
Maximum payload
kg
1000
Machine size (L*w*h)
mm
3150*2480*2480mm
Machine weight
kg
9800 kg
CNC Controller
LNC/SYNTEC/Mitsubishi/Fanuc/Siemens
Tool Magazine
24T
T-slot size
mm
18T*5*122
Distance between spindle nose and worktable
mm
87-687
Distance from spindle center to column track surface
mm
785
Linear Guide(Rail width / slider number)
mm
XZ:45mm*3
X:45mm*3
Y :45mm*2
Y:45mm*2/Z hard rail
Ball screw
mm
50*10 double nut
Nitrogen counterweight
optional
standard
Optional
Controller /Spindle/Nitrogen counterweight/Tool setting instrument/4th 5th rotary table/Chip conveyor
Model
Unit
LY-1060
LY-1165
LY-1165Z
X/Y/Z axis travel
mm
1000*600*600
1100*650*600

X/Y/Z maximum moving speed
m/min
36

36/36/24
X/Y/Z maximum cutting feed rate
 m/min
20


Spindle speed
rpm
8000/12000


X/Y/Z axis motor
kw
3/3/3 with brake


Spindle motor power
kw
11


Spindle taper hole

BT40


Positioning/Re-positioning accuracy
mm
±0.008


Table size (L x W)
mm
1100*600
1200*600

Maximum payload
kg
800
1000

Machine size (L*w*h)
mm
 2750*2440*2390
3150*2640*2490

Machine weight
kg
8000
8500

CNC Controller

 Mitsubishi/FANUC


Tool Magazine

24 Circular Tool Magazine


T-slot size
mm
18T*5*100


Distance between spindle nose and worktable
mm
150-750
130-730

Distance from spindle center to column track surface
mm
655
710
680
Linear Guide(Rail width / slider number)
mm
X:35*2
YZ:45*2
XY:45mm*3
Z :45mm*2
X:45mm*3
Y:45mm*2/Z hard rail
Ball screw
mm
40*12 double nut


1. Your product look similar, but the price is different. What's the difference? -The appearance are similar, but the models, parameters and configurations are different, so the prices are different. The higher the configuration, the higher the price. If you want to get an accurate quotation, please contact customer service. 2. Can your offer customized service? -Yes, we can. Please provide the specification for the machine you need, and tell us your requirements. 3.With so many machine tools, how to choose one that suits me? -Please provide the requirements of the products you need to process: drawings, dimensions, size of workpeices etc. we will recommend the model suitable for you according to the products you need to process. 4. Is your machine tool 3-axis, 4-axis or 5-axis? -We have 3-5 axis machine tools, we need know the size you need for 4th 5th rotary table,NC controller ,motor brand and models,so that can offer a accurate quotation to you. 5.Can you offer me a quotation with shipping fees ? -Usually, we offer FOB price. Because the shipping fees is different in different countries at different times. We usually provide you with an FOB quotation first. If the price you are satisfied, we will find the forwarder to provide you with a freight quotation.
