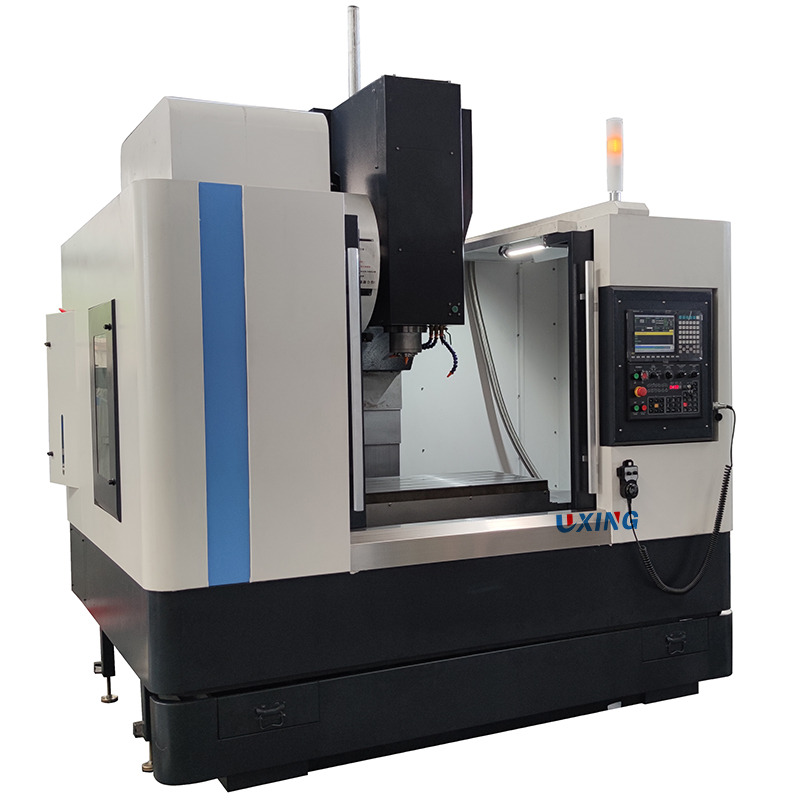

GSK FANUC control new 3/4 axis cnc machining center vertical VMC850 VMC1060

1.0 Sets
MOQ
GSK FANUC control new 3/4 axis cnc machining center vertical VMC850 VMC1060
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Spindle Taper: BT40
No. Of Spindles: Single
Type: VERTICAL
Dimension(L*W*H): 3000*2500*2880mm
Weight (T): 5.8 T
Table Size (mm): 1300*600mm
CNC Control System: GSK, FANUC, MITSUBISHI, KND, Siemens
Number Of Axes: 3, 4
Table Travel (X) (mm): 1000
Table Travel (Y) (mm): 600
Table Travel (Z) (mm): 500
Positioning Accuracy (mm): ±0.01/300
Repeatability (X/Y/Z) (mm): ±0.01
Range Of Spindle Speed(r.p.m): 80 - 8000 R.p.m
Spindle Motor Power(kW): 11
Max. Table Load(kg): 600 Kg
Feed Speed(mm/min): 1 - 10000 Mm/min
Rapid Feed Speed(m/min): 20/20/16
Min. Time Of Tool Change(s): 5
Tool Magazine Capacity: 16, 20, 24
Key Selling Points: High-accuracy
Warranty: 1 Year
Voltage: Customized
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Energy & Mining
Showroom Location: Canada, United States, Philippines, Brazil, Peru, Mexico, Russia, Argentina, Chile, Colombia, Bangladesh, South Africa, Kazakhstan, Ukraine, Tajikistan, Malaysia
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor
Model: VMC1060
Product Name: Vertical Cnc Machining Center
Spindle Nose To Table Surface: 70-670mm
CNC Controller: Fanuc Siemens Syntec KND GSK
Cutting Feed Speed: 1-10000mm/min
Worktable Size: 1300*600mm
X/Y/Z Axis Travel: 1000/600/500mm
Tool Changer: 16/20/24 Tools
Machine Weight: 5800kg
After-sales Service Provided: Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: Canada, United States, Philippines, Brazil, Peru, Indonesia, Mexico, Malaysia, Argentina, Chile, Colombia, Romania, Bangladesh, Kazakhstan, Ukraine, Uzbekistan, Tajikistan, None
Certification: CE ISO
Basic Infomation
Certification: CE ISO
Model Number: VMC1060
Payment & Shipping Terms
Packaging Details: The package is export standard plywood case with iron pallet below ,very strong and durable .
Supply Ability: 160 Set/Sets per Month
Product Description
GSK FANUC control new 3/4 axis cnc machining center vertical VMC850 VMC1060

Product characteristics:

VMC1060 is a new generation vertical machining center. It can be used in aerospace, military industry, hydropower, wind power, automobile parts, machining, precision machining and mould manufacturing. Small parts and non-ferrous metals high-speed and high-precision automatic processing. Integral casting FEM finite element analysis, dynamic simulation completely eliminate structural stress, to ensure the best rigidity and stability.

Widely used in mechanical processing, mold, instruments, instruments and other industries. The main components, such as base, fuselage, worktable, middle slide, lift slide and so on, are cast with high strength material, and the stability of machine tool is ensured by artificial aging.
Machine main specifications:
Specification
Unit
VMC650
VMC850
VMC1060
VMC1270
Table size
mm
800×400
1000×500
1300×600
1300×700
T-slot(NO.x width x pitch)
mm
3-16-120
5-18-100
5-18-120
5-18-115
Max.table load
kg
400
500
600
700
Guide rail type

Linear rail guide
Linear rail guide
Linear rail guide
Linear rail guide
X/Y/Z axis travel
mm
650×400×500
800×500×500
1000×600×500
1200×700×700
Distance from spindle nose to worktable
mm
70-570
100-600
70-670
100-800
Distance from spindle center to column
mm
450
580
655
750
Spindle taper

BT40
BT40
BT40
BT40
Spindle Speed
rpm
8000
8000
8000
8000
Spindle Drive

Belt
Belt
Belt
Belt
Spindle Motor
kw
5.5
7.5
11
11
X/Y/Z axis rapid feed speed
m/min
20/20/20
24/24/24
20/20/16
20/20/16
X/Y/Z axis cutting feed rate
mm/min
1-6000
1-10000
1-10000
1-10000
Tool changer

Hat type-16T
Arm type-24T
Arm type -24T
Arm type -24T
Positioning accuracy
mm
±0.01/300
±0.008/300
±0.01/300
±0.01/300
reposttioning accuracy
mm
±0.01
±0.008
±0.01
±0.01
Machine dimensions(L*W*H)
mm
2300×2000×2350
2200×2350×2550
3000×2500×2800
3000×2500×2800
Machine weight(N.W/G.W)
T
3.0
5.0
5.8
5.8
Details:

Optional accessories(need add extra cost):

The 4th axis;
Chip conveyor.
Tool setter.


FAQ:

1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .

3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.

4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.

5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
