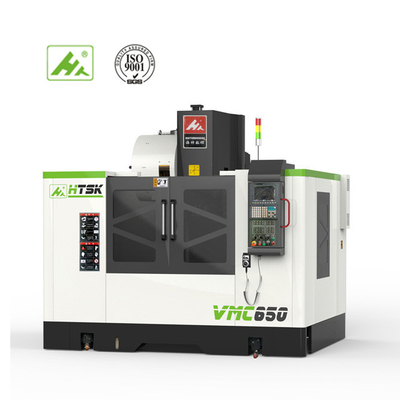

High Way Vertical Box Milling Machine Vmc650 CNC Factory Rigidity&precision Vmc Machining Center

1.0 Sets
MOQ
$24,991.02(1 - 4 Sets) $23,451.39(5 - 9 Sets) $22,973.58(>=10 Sets)
Price
High Way Vertical Box Milling Machine Vmc650 CNC Factory Rigidity&precision Vmc Machining Center
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: VERTICAL
Dimension(L*W*H): 2650*2000*2400 Mm
Weight (T): 4.8
CNC Control System: FANUC
Key Selling Points: High-accuracy
Warranty: 1 Year
Voltage: 220V/380V
Applicable Industries: Manufacturing Plant
Table Size: 860*430 Mm
Spindle Speed: 8000 Rpm
Spindle Taper: BT40-120
X/Y/Z Axis Travel: 600*400*400mm
Cutting Feed Speed: 0-6000mm/min
Weight: 4800 Kg
After-sales Service Provided: Online Support, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Certification: ISO9001\ OHSAS18001\ ISO14001
Basic Infomation
Certification: ISO9001\ OHSAS18001\ ISO14001
Payment & Shipping Terms
Packaging Details: EXPORT STANDARD SEAWORTHY PACKING
Supply Ability: 50 Set/Sets per Month
Product Description
Product Description

Product Application

CNC milling 650 vertical machining center is suitable for producing metal product and parts in all shapes. It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and so on.

SPECIFICATIONS FOR HIGH-ACCURACY 850 VERTICAL MACHINING CENTER

Capacity
Table size
860*430mm
Max. table load
600kg
T slot qty-width*distance
5-18*100mm




Spindle
Spindle speed
8000 rpm
Spindle nose to table surface
100-550mm
Spindle center to Column surface
475mm
Spindle taper
BT40-120
Main motor power
5.5kw
Three-axis servo motor power
2.2kw



Box way
X axis travel
600mm
Y axis travel
400mm
Z axis travel
400mm
X/Y axis rapid feed
24m/min
Z axis rapid feed
36m/min
Cutting feed speed
0-6000mm/min



Automatic tool changer
Tool changer type
Disc type / hat type (arm type optional )
Standard tool number
16pcs
Maximum tool diameter
Empty Φ 120/ full tool Φ 80
Maximum tool length
300mm
Maximum tool weight
7kg

Accuracy
Positioning accuracy
300mm/±0.005mm
Accuracy of repeated positioning
300mm/±0.003 mm

Weight and Size
Net Weight
4800 kg
Overall Dimension
2650*2000*2400mm

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high automatization and intellectualization,no pollution

Detailed Images

Main Features

Name: Guide Screw
Brand: LTM
Original: Taiwan


 Guide screw is Taiwan LTM C3 high precision with high strength ball screw.Ensure the positioning accuracy and repeat positioning accuracy of the machine tool.

Machine Parts

Name: Linear Guide Rail
Brand: HIWIN
Original: Taiwan


X/Y/Z axis linear guide rail all uses the original Taiwan HIWIN heavy-duty roller straight-line guide rail, may satisfy the customer the speed, the precision high request.




Main Features

Name: Spindle
Brand: KENTURN
Original: Taiwan


Spindle USES P4 super precision spindle with standard speed up to 8000rmp

Main Features

Name: Bearing

Brand: FAG
Original: Germany

Germany FAG cylindrical roller bearings are high-rigid and can support high radial loads, and because of the cage, they are more suitable for high speeds than full load designs.

Main Features

Name: ATC
Brand: SANTET
Original: Taiwan

Taiwan SANTET disc type automatic tool changer.
Mechanical arm tool change, point-to-point tool change only 1.9 seconds

Machine Body

Name: Alloy cast iron of the machine body


The machine body adopts alloy cast iron with secondary tempering to ensure the stability and reliability of the body and effectively prevent the deformation of the body

Company Information
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

FAQ
Packing & Delivery
Packaging
Size
2650(L)*2000(W)*2400(D)
Weight
4.8T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
