Condition:
New
Spindle Taper:
BT40
No. Of Spindles:
3
Type:
VERTICAL
Dimension(L*W*H):
3260*2450*2700mm
Weight (T):
7 T
Table Size (mm):
1200*600mm
CNC Control System:
FANUC
Number Of Axes:
3
Table Travel (X) (mm):
1100 Mm
Table Travel (Y) (mm):
600 Mm
Table Travel (Z) (mm):
600 Mm
Positioning Accuracy (mm):
0.01 Mm
Repeatability (X/Y/Z) (mm):
0.005
Range Of Spindle Speed(r.p.m):
1 - 8000 R.p.m
Spindle Motor Power(kW):
11/15
Max. Table Load(kg):
850 Kg
Feed Speed(mm/min):
1 - 10000 Mm/min
Min. Time Of Tool Change(s):
2
Tool Magazine Capacity:
24
Key Selling Points:
Competitive Price
Warranty:
1 Year
Voltage:
220V/380V
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Energy & Mining
Showroom Location:
None
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
PLC
Product Name:

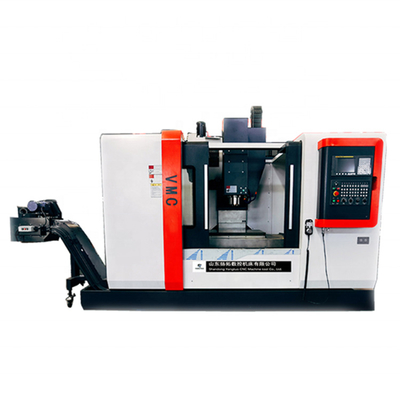

Yangtuo Vertical Machining Center VMC1160
Distance Spindle Center Column Surface:
650
X/Y/Z Max.rapid Traverse:
30/30/30
Electric Capacity:
22kva
T Slot:
5-18x150
Guideways:
Taiwan Hiwin Linear Guideways
Color:
Customers' Requirement
Keywords:
Taiwan Vertical Machining Center
After-sales Service Provided:
Online Support, Video Technical Support, Free Spare Parts, Field Maintenance And Repair Service
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
Egypt, Canada, Turkey, United States, Italy, France, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Thailand, Malaysia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Sri Lanka, Romania, Banglad
Certification:
CE ISO
