Condition:
New
Range Of Spindle Speed(r.p.m):
20000 - 30000 R.p.m
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty Of Core Components:
1 Year
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump, Others
Dimension(L*W*H):
1730*2000*2300
Weight (KG):
3800
Repeatability (X/Y/Z) (mm):
±0.003
Positioning Accuracy (mm):
0.01 Mm
Spindle Power (kW):
7.5
Warranty:
1 Year
Key Selling Points:
High-accuracy
Application:
Other Applications, Hard Materials, House Fixtures, 3C Accessories, Precision Mold & Die, Precision Electrodes, Medical Industry
Showroom Location:
Turkey, United Kingdom, United States, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, Romania, Bangladesh, South Africa, Kazakhstan, Ukr
X/Y/Z Axis Travel:
600/500/250 Mm
X/Y/Z Maximum Moving Speed:
15 M/min
X/Y/Z Maximum Cutting Feed Rate:
10 M/min
X/Y/Z Servo Motor Power:
0.85/0.85/0.85kw With Brake
Spindle Taper Hole:
BT30
Positioning/Re-positioning Accuracy:
±0.003 Mm
Table Size (L X W):
600*500 Mm
Maximum Payload:
400kg
CNC Controller:
LNC/SYNTEC/FANUC/SIEMENS/MITSUBISHI

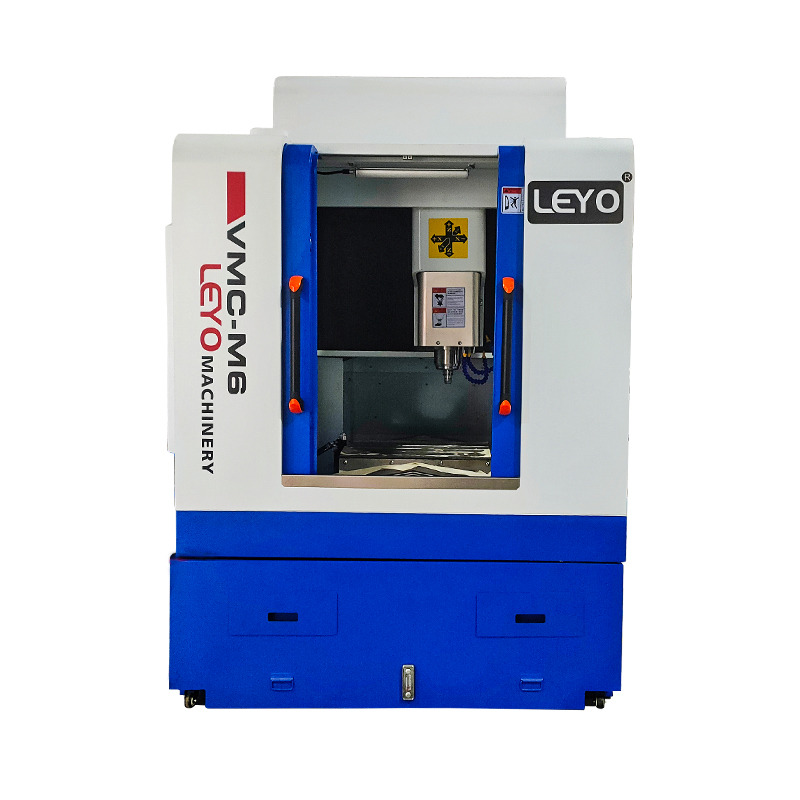

Machine Name:
CNC Milling
