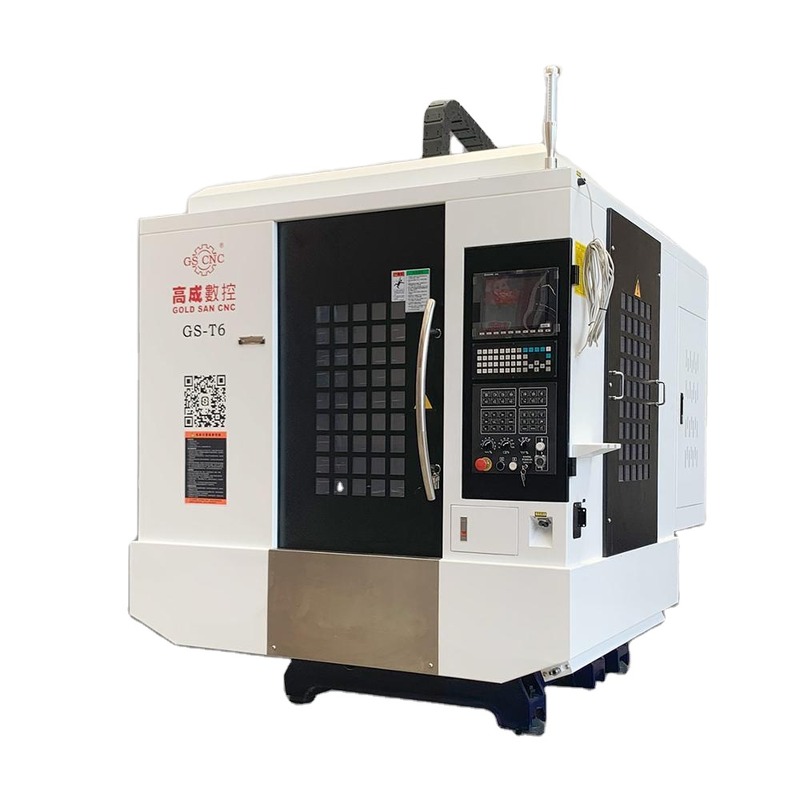

GS-T6 is CNC controlled machine center equipped with automatic tool changers, tool magazines, coolant systems, and enclosures. It is generally classified as vertical machining centers (VMCs).
Different from the original CNC Milling Machines or Machine Centers, GS-T6 could not only do milling machining but also drilling and tapping. Moreover, GS-T6 is standard equipped with automatic tool changer and tool magazine. These machine features make it possible for GS-T6 to easily do multiple machining processes more productively and it is especially intended for processing 3C (Computer, Communication, Consumer Electronic) products.
SPECIFICATIONS FOR CNC DRILLING & TAPPING MACHINE CENTER | ||||||
Size of Worktable | 700 x 420 mm | |||||
Travel of X, Y, Z Axis | 600 x 400 x 300 mm | |||||
Distance from spindle to worktable | 150 - 450 mm | |||||
Speed of Spindle Movement | 36m / min | |||||
Position Accuracy | 0.008 / 300mm | |||||
Re-position Accuracy | 0.005 mm | |||||
Spindle | BT30 20000rpm 5.5 Kw 16T or 21T Sun Type Tool Changer Driect Drive Spindle | |||||
Air cooling | ||||||
Tool Magazine | 16T or 21T Sun Type | |||||
Max. Workpiece Weight | 300 Kg | |||||
Total Power | 18 Kw | |||||
Size of Machine | 2300 x 2200 x 2200 mm | |||||
Machine Weight | 3500 Kg | |||||
Power Supply | 380V / 50Hz | |||||
CNC Controller | SYNTEC 11MA with LAN data transmission function | |||||
Servo Motor and Drive | Japan YASKAWA | |||||
Guide and Ball Screw | Linear guides, C3 high precision level ball screws | |||||
OTHER SPECIFICATION | ||||||
Standard Accessories | ||||||
Electronic Hand Wheel - 1 set | ||||||
Clamping tool - 1 set | ||||||
BT30 / ER25 Tool Holder with Pull Stud - 1 set | ||||||
BT30 / ER25 Tool Holder Handing Device - 1 set | ||||||
BT30 / ER25 Wrench - 1 pc | ||||||
High Accuracy ER32 Tool Chuck - 5 pcs | ||||||
Washing gun - 1 pc | ||||||
Nuts - 1 set | ||||||
Hex Screwdriver - 1 set | ||||||
Tool box - 1 set | ||||||
User Manual Book and DVD in English - 1 set | ||||||
Optionals | ||||||
4th-Axis Rotary Worktable (Dia. 125mm) with Japan YASKAWA servo motor and drive | ||||||
Taiwan High Accuracy 3-jaw chuck (For 4th-Axis Rotary Worktable) | ||||||
1) High speed axis travel (up to 36m / min)
2) Automatic tool changer with Ultra High Tool Changing Speed (up to 2.5s)Since 1991, GOLD SAN has exported EDM machines to 34 countries in the world. Our machines are widely applied to the production of dies and molds and other appliactions that cannot be achieved by standard machining methods.
Providing professional advice, support and training for clients are our core rule. We insist to satisfy every customer not only with our productive machines but also our sincere services.
GOLDSAN's factory is located in Jiangmen Industrial Park, China, which is conveniently located 90 minutes driving from Guangzhou Baiyun airport. Customer support is handled by experienced engineers and all support calls and emails are documented and entered into a CRM database resulting in highest degree of customer satisfaction.
* To deliver the best quality to our customers, every new machine from the production line is challenged by an extremely strict quality check procedure.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
A: Manufacturer.
A: 35-60 days for general model. If it needs customized production, it will be longer. Delivery time depends on product changes.
A: Yes, we could provide samples. Sample fee and freight cost are paid by your side.
A: T/T or L/C is ok. T/T is 30% after PI confirmation, 70% before shipment.
