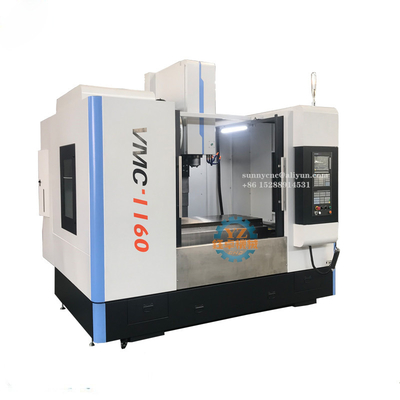

Factory Low Price Guaranteed mini cnc center machine 5 axis/3 axis VL1160
|
VL1160---Linear guideways in 3 axes |
||
|
Travel |
X axis |
1100mm |
|
Y axis |
600mm |
|
|
Z axis |
750mm |
|
|
Spindle nose to table |
150-900mm |
|
|
Spindle nose to column |
659mm |
|
|
Feed |
max X rapid feed |
48 m/min |
|
max Y rapid feed |
48 m/min |
|
|
max Z rapid feed |
48 m/min |
|
|
Cutting feed |
1-10m/min |
|
|
Torque |
X:20N.m Y:20 N.m Z:20N.m |
|
|
Table |
Table size |
1200×600mm |
|
Max load |
700Kg |
|
|
Table surface to floor |
950 mm |
|
|
T slot |
5×18×100mm |
|
|
Spindle |
Type |
Belt |
|
Speed |
8000 rpm |
|
|
Spindle taper |
BT40 |
|
|
Main motor |
11KW |
|
|
Accuracy |
Accuracy (JIS) |
±0.005/300mm |
|
Repeatability (JIS) |
±0.003mm |
|
|
Other |
Weight |
7000 Kgs |
|
Size |
3200×2500×2900 |
|
Standard Configuration
KND GSK CNC Controller
16T Funnel tool magazine.
BT40 / 150 precision spindle unit
Three axis linear guide Taiwan HIWIN ,ball screw
Intermittent lubrication system,coolant, water pump
Full protection of sheet metal system
380v 50hz 3phases
Optional configuration
FANUC SIEMENS Mitsubishi CNC Controller
Direct drive spindle,1000rpm
16 or 24 Arm type tool changer
Chip conveyor
Tool Setting, Workpiece Setting
Spindle center outlet water
220v 3ph, 440v , 418v ect.
