Condition:
New
Spindle Taper:
BT40
No. Of Spindles:
Single
Type:
VERTICAL
Dimension(L*W*H):
3500*2480*2480mm
Weight (T):
12 T
Table Size (mm):
1700*800
CNC Control System:
FANUC, MITSUBISHI, Siemens, LNC
Number Of Axes:
3, 4, 5
Table Travel (X) (mm):
1500
Table Travel (Y) (mm):
800
Table Travel (Z) (mm):
700
Positioning Accuracy (mm):
±0.008
Repeatability (X/Y/Z) (mm):
±0.008
Range Of Spindle Speed(r.p.m):
1 - 8000 R.p.m
Spindle Motor Power(kW):
3/3/3kw With Brake
Max. Table Load(kg):
1200 Kg
Feed Speed(mm/min):
1 - 12000 Mm/min
Rapid Feed Speed(m/min):
15
Min. Time Of Tool Change(s):
1
Tool Magazine Capacity:
24
Key Selling Points:
Automatic
Warranty:
1 Year
Voltage:
380V 50HZ /220V 60 HZ
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Automobile Parts Processing, 3C Industrial Parts Processing, Aerospace Parts Processing, Other Precision Parts Processing, All Kinds Of Mold Processing
Showroom Location:
Egypt, Canada, Turkey, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, Russia, Thailand, Argentina, South Korea, Algeria, Kyrgyzstan, Australia
Marketing Type:
Hot Product
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Other
Product Name:

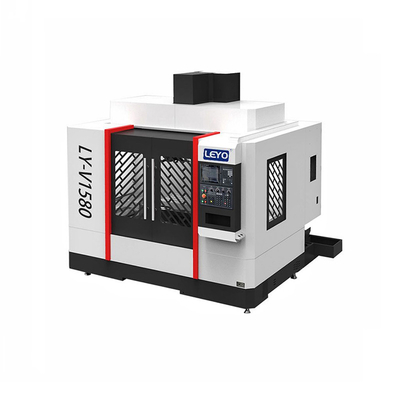

Vertical Cnc Machining Center
Product Type:
Cnc 3/4/5 Axis Machine
Machine Name:
VMC 1580 Vertical Machining Center
Machine Type:
Vertical Machine Centre
Keywords:
Machine Centre
Application:
Metal Working Mould Processing
Function:
Metal Drilling Tapping Milling
Certification:
CE
Processing:
Turning Milling Drilling
Control System:
SIEMENS LNC SYNTEC FANUC MITSUBISHI(optional)
