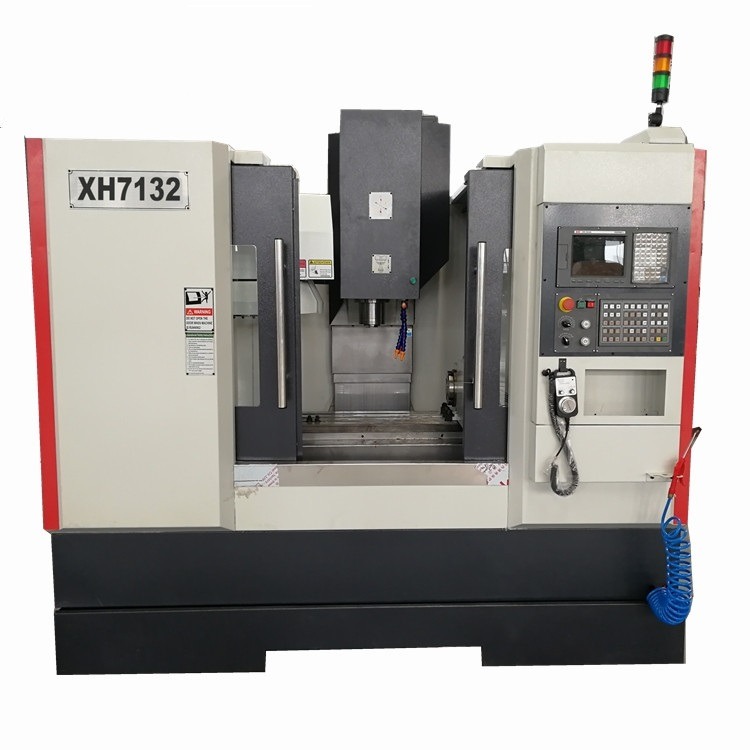

Product main features and uses:
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
CNC Machining Center Features :
1, High quality casting body, ensure machine's rigidity
2,Taiwan high precision spindle
3. Taiwan armless type ATC with 16 pcs tools
4. enclosed cover
Product main technical specification:
|
Specifications |
XH(K)7132 |
|
Table size |
320x800mm |
|
Longitudinal travel |
500mm |
|
Cross travel |
320mm |
|
Vertical travel |
350mm |
|
Guideway |
X/Y/Z Linear guideway |
|
Spindle motor power |
2.2kw |
|
Spindle speed |
10000r/min |
|
Spindle taper |
BT30 |
|
X/Y/Z axis rapid traverse |
20/20/18mm/min |
|
X/Y/Z axis cutting feed rate |
10m/min |
|
Spindle nose to table surface |
120-470mm |
|
Spindle center to column surface |
350mm |
|
Positioning accuracy |
±0.007mm |
|
Repositioning accuracy |
±0.003mm |
|
Machine weight |
2500kg |
|
Overall dimensions |
2250x2200x2400mm |
Standard : Optional :
1,Siemens 808D controller 1,FANUC , Siemens , KND , GSK etc
2,BT40 Armless type ATC with 16 tools 2,Arm type ATC
3,Taiwan spindle, screw and locking nut, linear, cylinder 3,4 axis
4,Japan NSK bearing 4,Automatic chip
5,Germany R+W coupling
6,Automatic lubrication system
7,Cool-heat ex-changer
8,Tri-color alarm lamp
9,Full splash guard
10,spindle taper hole cleaning system
11,cooling system
Within 18 Hours Feedback is Our Promise
REALGOLD Fast Facts:
♦ 97% Client Retention Rate
♦ 10,000+ Cooperate Clients
♦ 25 Years of Brand Operating, 15 Years of Machine Tools Building
♦ 100% Focus on Our Clients Best interests
We will supply parts or service for repairs at no cost for a period of 18 months after bill of lading date. Extended warranty is available at the time of purchasing.
Enterprise profile
Established in 2001, Tengzhou Realgold Machinery Co., LTD. is one group of machine tool manufacturers, including three factories, one Research and Development Center, mainly produce and export CNC & Conventional lathe, CNC vertical lathe, CNC machining center & vertical milling machine, milling & drilling machine, radial drilling machine, etc.
Tengzhou Realgold Machinery Co., LTD. owns the independent right to import and export, our products are very popular in domestic and overseas market, special in EU, USA, south of America, And we established long-term cooperation with Fanuc, Siemens and other companies to supply best overseas service for our clients, such as training, maintenance.
Our company follows the concept of “FOUCS ON QUALITY”, We built up quality control system, and obtained the certificate of ISO9001.
Realgold by your side, as always.
Q1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide kinds processing solutions for customers, in order to meet different requirements.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory or customer's factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive not only in China.
Q5. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of 18 months, starting on the machine’s bill of lading date.
Q6. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 30-45 days. All our machines are packed with seaworthy package.
