Home /Products/CNC Panel Saw/BCM330A Horizontal CNC Beam Saw Automatic Heavy Duty CNC Panel Saw For Plywood Furniture Wood Cutting

BCM330A Horizontal CNC Beam Saw Automatic Heavy Duty CNC Panel Saw For Plywood Furniture Wood Cutting

1 Set
MOQ
$35,999.00(1 - 4 Sets) $32,499.00(>=5 Sets)
Price
BCM330A Horizontal CNC Beam Saw Automatic Heavy Duty CNC Panel Saw For Plywood Furniture Wood Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Panel Saw
Use: Woodworking
Style: Horizontal
Usage: Woodworking Cut
Voltage: 380V/50HZ
Dimension(L*W*H): 6600*6400*1800mm
Warranty: 2 Years
Application: Woodworking, Furniture Making, Furniture Making,woodworking
Weight (KG): 5700 KG
Power (kW): 34
Key Selling Points: Easy To Operate
Max.Cutting Height At 90°(mm): 120mm
Max.Cutting Height At 45°(mm): 120mm
Max. Length Of Workpiece (mm): 3300mm
Applicable Industries: Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Printing Shops, Construction Works , Energy & Mining, Advertising Company, Woodworking, Furniture Making
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 6 Months
Core Components: Motor
Name: Automatic Panel Saw
Diameter Of Main Saw Blade: 450mm
Speed Of Main Saw Spindle: 4000r/min
Diameter Of Scoring Saw Blade: 200 Mm
Speed Of Scoring Saw Spindle: 6000r/min
Main Saw Motor Power: 15kw
Scoring Saw Motor Power: 2.2kw
After-sales Service Provided: Online Support
After Warranty Service: Video Technical Support, Online Support
Local Service Location: United Kingdom, France, Germany
Showroom Location: France, Germany, United Kingdom
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: Plywood package
Supply Ability: 100 Set/Sets per Month
Product Description
Product Description

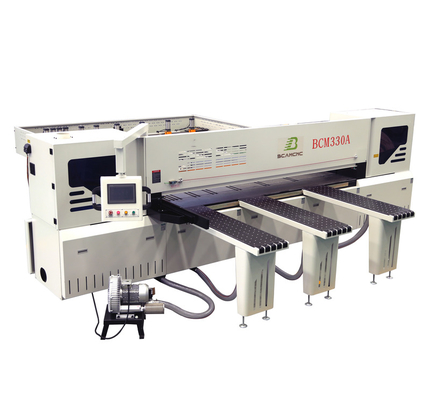

Automatic Panel Saw BCM330A
Features:
1.Using precision linear slide rail, strong stability, high precision.
2.Sheet metal clip is expected to adopt cylinder and feed forward through the roller bed surface, feeding and accurate, and ensure that saw cutting precision, and will not hurt the work piece surface.
3.Floating effect of the floating platform is caused by the pressure, to facilitate feeding, especially suitable for the heavy plate, and can avoid the surface damage.
4.Automatic sheets-feeder with Japan's Mitsubishi high-performance servo motor drive, big torque, accurate positioning and long service life.
5.The machine adopts imported magnetic feet as feed positioning detection control, precise positioning detection size effectively, improve the cutting precision.
6.Advanced reasonable electrical control design, equipment can be realized automatically return, to ensure the safety of the processing efficiency.

The configuration of Automatic panel saw machine
Configuration
Department
Maximum cut length
3300mm
Maximum cut width
3300mm
Maximum cut height
120mm
Maximum saw blade height
150mm
Min. processing board size
50mm*50mm
Main saw motor power
15kw
Diameter of main saw blade
450mm
Air pressure
0.6-0.8Mpa
Weight
5700KG
Dimension
6600*6400*1800mm
Detailed Images




Control System

The touch screen panel display interface is simple and easy to understand, and the control method is safe and reliable.



Pneumatic clamping and Roller conveyor
Suspended splint manipulator, easy to adjust and effectively avoid scratch on board surface; The imported high-precision grinding rack and gear is used for reciprocating motion, which is stable and durable.




Air floating table

Machine body is manufactured with a rigid foundation, superior welding, CNC machining, tempering and painting to provide a rigid and stable working frame.





Saw
Large and small saw blades, positive and negative sawing methods to ensure perfect work cutting.
Application
Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
Packing & Delivery
Packaging
Size
6600*6400*1800mm
Weight
5700KGS
Packaging Details
Automatic panel saw would package with plywood case then loading into container.
Certifications
Company Profile
BCAM has more than 15 years experience, and has built and installed thousands of machines for industries including Aluminum & Metal Composite Cladding, Sign making, Graphics & Print Finishing, Cabinetry, Woodworking, Plastic Fabrication, Metal Fabrication,Foam Packaging, Point of Purchase, Solid Surface and many more sectors and specialty areas.
Our Service
Guarantee:
1.24 months guarantee of the BCM1530S CNC Router machine.
2.Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
3.Lifetime maintenance free of charge
4.We will provide the consumable parts at an agency price when you need replacement.
5.Machine has been adjusted and tested before delivery
6.Our staff can be sent to your company to install or adjust if necessary

After-sale service:
1. 24 hours Technical support by Email or Calling.
2. English manual and CD video for machine using and maintaining.
Related Products

FAQ

1. Delivery time of Automatic panel saw
BCM330 standard size and configuration Automatic panel saw delivery time is 15 days.So we suggestion client pay 100% money, because we can can arrange machine delivery immediately.

2. Can you sent machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, them can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.

3.This is the first time to use Automatic panel saw,is it easy to operate?
Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:
1.English guide video and instruction book are sent to you free together with the Automatic panel saw.
2.Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side.
3.We have our own after-sales service team,24 hours technical support by calling, video and email.

4.Term of payment ?
80% T/T in advance, 20% T/T before delivery.After we receive your deposit, we will arrange production,meanwhile machine pictures and videos will be sent to clients in time,when they make sure everything is ok, transfer the balance and we arrange to delivery machine.

5.Does your product exported to our country?
Sure,Our company has been exported to more than 100 countries and has established branches in the UK, France, Poland, Germany,Korea, Georgia, Pakistan, Canada and other countries.In addition, we have established overseas warehouses in Dubai and Germany.
