Home /Products/CNC Panel Saw/Horizontal Easy To Operate Reciprocating CNC Panel Saw Machine Beam Saw Available

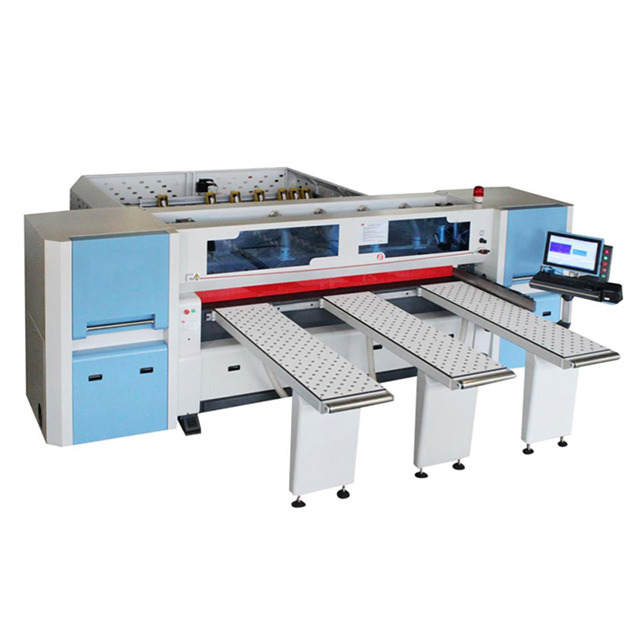

Horizontal Easy To Operate Reciprocating CNC Panel Saw Machine Beam Saw Available

1 Set
MOQ
$27,000.00(1 - 1 Sets) $25,000.00(>=2 Sets)
Price
Horizontal Easy To Operate Reciprocating CNC Panel Saw Machine Beam Saw Available
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Computer Panel Saw
Use: Woodworking
Style: Horizontal
Usage: Wood Cutting
Voltage: 220V/380V
Dimension(L*W*H): 5500*5600*1700mm
Warranty: 1 Year
Application: Wood Cutting
Weight (KG): 5000 KG
Power (kW): 17
Key Selling Points: Automatic
Applicable Industries: Manufacturing Plant
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: /
Name: Computer Panel Saw
Sawing Length: 2600mm
Sawing Thickness: 85mm/100mm/120mm
Dia.Of Main Saw Blade: 355mm/400mm/460mm
Head Saw Motor: 15kw
Automatic Feeding Motor: 1.5kw
Total Power: 17kw
Automatic Feeding Speed: 0-120m/min
Workbench Height: 950mm
After Warranty Service: Video Technical Support
Showroom Location: Mexico, Russia, Turkey, Thailand, Brazil, Canada, Chile, South Africa, Australia
Basic Infomation
Payment & Shipping Terms
Packaging Details: Woodworking Machinery Computer Panel Saw Machine: as customer's requirment.
Supply Ability: 200 Set/Sets per Year Computer Panel Saw
Product Description
Product Description
Main Features:
1. Linear guide rail line,higher accuracy;(European and American high-end electronic saws technology)
2. German electronic ruler automatic precision compensation,is the most accurate and reliable positioning sensor,it is not be affected by the surrounding environment and magnetic fields,safe and stable,without needing to maintain;(China’s first manufacturer to use the technology)
3. Crawler-type vacuuming,accurately collect sawing dust,vacuum rate is up to 100%,it is no longer the traditional open-cleaning;
4. The world’s first manufacturer to achieve scroll saw automatic adjustment;
5. The latest manipulator structure,the minimum size of plywood can reach 20mm;
6. China’s first electronic saw without load frequency converter,double servo motors control,with cutting stability;
7. Remote terminal operation status monitoring;
8. Independent retractable intelligent side device;
9. Extensible optimized intelligent object docking;
10. Penumatic saw blade locking clip or ZT-lock saw blade quick-change system
Product Paramenter
Name
CNC Electronic Saw
Sawing Length
2600mm
Sawing Thickness
82mm
Dia.Of Main Saw Blade
350mm
Axis Dia.Of Main Saw Blade
30mm
Rotate Speed Of Main Saw Blade
4200rpm
Dia.Of Grooving Saw Blade
180mm
Axis Dia.Of Grooving Saw Blade
30mm
Rotate Speed Of Grooving Saw Blade
5600rpm
Saw Speed(Stepless)
0-120m/min
Main Saw Motor
11kw
Grooving Saw Motor
1.5kw
Saw Drive Servo Motor
1.5kw
Automatic Feeding Motor
1.5kw
Pusher Motor
2kw
High Pressure Blower Motor
2.2kw
Total Power
17kw
Automatic Feeding Speed
0-120m/min
Operation Pressure
5-7kg/cm
Workbench Height
920mm
Net Weight
5000kg
Dimension
5300*6000*1750mm
Detailed Images

Air floating feeding platform

The ball-type air float table make the feeding easily

Feeding clamp device

High performance pneumatic feeding clamps (double finger type), positioned by precision servo drive.

Electronic ruler magnetic induction device

Select German electronic ruler closed-loop precision compensation. The compensation tolerance is plus or minus 0.02mm. High precision Swiss gear bar feed travel mechanism.

Sawing device

The saw base is guided by a linear guide. Straight saw line, high precision, large load, gear rack drive, CNC sawing. Suitable for dusty environments. High stable accuracy.

Expansion set lock shaft

Precision expansion set lock shaft design，assembly become more easily.

Precise linear guide

It adopts square linear guide rail, low noise design, high precision, smooth and durable operation. Long service life.
Related Products
Company Profile

Our Company：

HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback
Product packaging
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer’s account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines has been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia, Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers’ request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German
