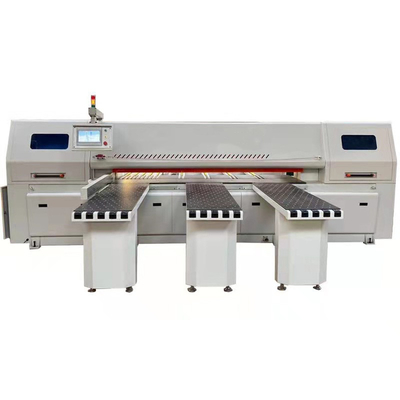

Large VERTICAL 3800mm Use CNC Computer Cut Beam Saw Machine

1 Set
MOQ
$10,000.00(>=1 Sets)
Price
Large VERTICAL 3800mm Use CNC Computer Cut Beam Saw Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Panel Saw
Use: Woodworking
Style: VERTICAL
Usage: Sawing Plank/Square Log
Voltage: 380V/50HZ/3PH, Or Customized
Dimension(L*W*H): 6500*6000*1750 Mm
Warranty: 1 Year
Application: Building Material Shops, Machinery Repair Shops
Weight (KG): 1000 KG
Power (kW): 5.5KW
Key Selling Points: Strong Quality And Top 2 In China For This Machine
Max.Cutting Height At 90°(mm): 90mm
Max.Cutting Height At 45°(mm): 120mm
Max. Length Of Workpiece (mm): 3200mm
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Marketing Type: Hot Sale With Competitive Price
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor And Bearings
Name: Beam Saw
Function: Wood Cuting
Host Shaft Speed: 4000/5000mm
Max Cutting Length: 1600~3800mm
Blade Speed: 17m/min
Max Sawing Wood Diameter: 600-1500mm
Max Cutting Height: 110/130 Mm
Rail Length: 5800MM
Capacity Cutting Size: 165
Speed Of Main Saw Spindle: 4000/6000 R.p.m
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Italy, Brazil, Saudi Arabia, Mexico, Spain, Thailand, Malaysia, Kenya, Argentina, Chile, Sri Lanka, Romania, South Africa, Nigeria, Tajikistan
Showroom Location: Peru, Italy, India, United States, Turkey, Thailand, Egypt, Philippines, Germany, United Kingdom, Kenya, Chile, Algeria, Sri Lanka, Kyrgyzstan, Nigeria, Australia, Morocco
Certification: CE/ISO9001
Basic Infomation
Certification: CE/ISO9001
Payment & Shipping Terms
Packaging Details: Wood case
Supply Ability: 1000 Set/Sets per Year
Product Description
Product Description
Specification
Model
MS270
Cutting length
3800mm
Saw shaft speed slot
9000r/min
Max Thickness
80mm
Main blade shaft diameter
300*30mm
Sliding table stroke
2800mm
Tilt angle of the blade
45°-90°
Main saw motor
15kw
Groove saw motor
2.2kw
Automatic feeding motor
1.5kw(Adjustable speed)
Slot Blade size
120×20mm
Weight
5000kg
Dimensions
6500*6000*1750mm
Total power
20.9kw

Characteristics of electronic saw cutting machine

1. lnfrared induction protection and emergency stop device,can make the machine stop quickly，to a large extent to ensure the safety of personnel (put an end to work-related injury) pressure strip pressing plate,to prevent the plate from squeezing(ensure the effect of plate).
2.The machine is equipped with a manipulator， which can automatically feed (save manpower); double servo setting,electronic ruler executive precision compensation,(reduce error); linear guide design，which can ensure the stable operation of the sawing car(ensure the sawing effect).
3.Easy to operate，intelligent control system, one person can complete the operation(save workers);the machine body after the critical high temperature annealing treatment,more stable and durable (extend service life);
4.Pressure beam and saw up and down fully closed dust collection device,ensure the workshop environment clean and tidy(clean and sanitary working environment).
Details Images


Ball type air floating table
High mechanical properties, wear-resistant surface and not easy to deformation, aging and other characteristics,coupled with the role of pneumatic float to achieve better cutting plate effect.




Reinforced nylon wheel
The horizontal height of nylon fluency wheel is consistent,so that the plate surface is flat and pasted on the fluency wheel to prevent the plate from scratch and squeezing.The fluency wheel can rotate flexibly, so that the manipulator can easily drag the plate.




Tracking down dust collector
The sawdust in the working process of the electronic cutting saw is sucked out to prevent the dust from blocking the saw blade, and the processed product achieves the ideal effect.





Neat circuit control system
The electrical parts adopt international famous brands to ensure the stable and durable operation of the electronic saw.





Sawing two linear guides
The slide block (Taiwan CSK) ensures the accuracy of the cutting dimension, which is suitable for re cutting with high speed.



Pressure beam
The pressure beam of the electronic cutting saw is made of high-quality steel, with a thick rubber pad at the bottom. In addition, there are two large cylinders on the left and right to drive the lifting, so that both sides of the pressure beam can be pressed up and down synchronously without damaging the plate surface.


Touch screen control system
Safe and reliable operation, simple interface, with complete operation instructions and trouble shooting guide lines. It can edit and manage sawing scheme, edit and manage sawing task, and simulate sawing execution.




Precision electronic ruler
Closed loop precision compensation of German electronic ruler, compensation tolerance +0.02 mm, high precision Swiss gear bar feeding walking mechanism.
Exhibition

Comprehensive understanding of the function of the electronic saw machine

1. It can automatically detect the sheet metal and quickly return to the original working state after cutting the required sheet metal. 2.The cutting speed adopts high-speed servo control,which can overcome the problem of different thickness and different material. 3.Pneumatic floating bead table is used for feeding，which makes heavy sheet and sample easy to change. Manipulator automatic feeding,low labor intensity，high production efficiency. 4. Original imported CNC automatic positioning, eliminate the error caused by human,greatly improve the dimensional accuracy.The perfect equipment of tracking pressure suction system can completely meet your high quality requirements. 5. In the process of production，the sawdust absorption device can be used to prevent the sawdust from blocking.
application
Company Profile
Jinan Grandio CNC has16 years of production experience, 11 years of export experience, can provide hands-on technical support, has an independent research and development team, can provide continuous product and software upgrade and update services.Qualified after-sales technical teams in many countries, which can help customers solve after-sales problems locally.
Even can help customers who with zero import experience to provide customs clearance to door service.Accept customized and OEM production, with 4 main production workshops, cnc router engraving machines, fiber laser cutting machines, other woodworking machinery, like sanding machine and pvc banding machine...Our new workshop is for 3d scanners,like laser scanner,3d Shining scanner, we provide the highest quality products, low prices and the best service, one-stop shopping, for all customers Free agent purchasing servicealways looking for powerful agent, work together, win-win.
The company's main products include Panel board furniture production line and cabinet door production line: Standard CNC router(For wood,stone,metal..3axis, 4axis and 5axis. support customized,OEM...) ATC CNC Nesting router, Multi-spindle cnc router machine 3D scanner, Vacuum membrane press machine, Wood sanding machine , Automatic edge banding machine, CNC side hole drilling machine Wood CNC lathe , Fiber laser cutting machine,etc.
Packing & Delivery
FAQ
1. who are we?
We are based in Shandong, China, start from 2017,sell to Southeast Asia(10.00%),Eastern Asia(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Southern Europe(10.00%),Africa(8.00%),Mid East(5.00%),Central America(5.00%),Western Europe(5.00%),South Asia(4.00%),Domestic Market(2.00%),Oceania(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Cnc router,Fiber cutting machine,CO2 laser engraving machine,Vacuum membrane press machine,Edge banding machine

4. why should you buy from us not from other suppliers?
Jinan chuangdiao 3d CNC has16 years of production experience, 11 years of export experience, can provide hands-on technical support, has an independent research and development team, can provide continuous product and software upgrade and update services.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an cost price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
If you have any questions about our products, please contact me with no hesitate..
