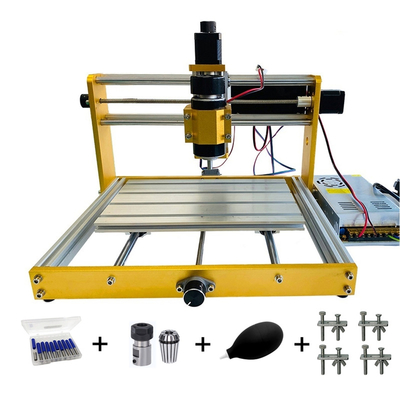

Desktop Wood CNC 3018 Plus Router Engraver Milling Machine with Stepper Motors  Nema17/23 and 52mm Spindle Holder Laser head 30W

Product Description:

Parameter:

XYZ three-axis actual stroke 300*180*60mm

Aluminum Table Size 300*180mm

Material: Aluminum

Stepper motor: Nema17 Stepper*3

Screw: T8 stainless steel screw, lead 8MM, POM anti-backlash nut

Spindle hole diameter: 52mm

Laser module diameter:40mm

Control software: GRBL Control

Spindle: 300W/500W Optional

Laser: 5.5W/15W/30W Optional

Power Supply: 24V 5A

Supported System: Windows XP/ Win 7/ Win 8/ Win10

Feature:

1.Foot pads installed at four corners of the machine

2.Screws are equipped with gaskets to protect the machine more

3.Both screws are equipped with knobs, size 8mm

4.Horizontal screw seat, inner diameter 8

5.Full metal oxidation sandblasting

6.12mm optical axis, stable and durable

7.Z axis can be raised and lowered as a whole

PS: Equipped with baffle and emergency stop switch hole

Application:

Laser engraving / CNC drilling

300W Spindle Kit:

·         3018 Plus Machine Frame*1pc

·         300W Spindle *1pc

·         300W Power Supply *1pc

·         3 Axis Controller *1pc

·         ER11 Chuck 8mm *1pc

·         Collet 3.175mm *1pc

·         Plate * 4Pcs

·         Drill Bit *10pcs

·         Dust Balloon *1

500W Spindle Kit:

·         3018 Plus Machine Frame*1pc

·         500W spindle *1pc

·         500W power supply *1pc

·         3 axis controller *1pc

·         ER11 chuck 8mm *1pc

·         Collet 3.175mm *1pc

·         Plate * 4Pcs

·         Drill bit *10pcs

·         Dust Balloon *1
