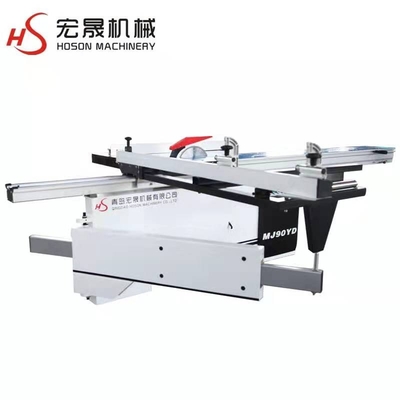

Sliding tabel saw | MJ6128 | MJ6130 | MJ6132 |
Push platform size | 2800*320 mm | 3000*320 mm | 3200*320 mm |
Maximum cuttin length | 2800 mm | 3000 mm | 3200 mm |
Maximum cutting width | 2800 mm | 2800 mm | 2800 mm |
Maximum cutting thickness | 75 mm | 75 mm | 75 mm |
Spindle speed of main saw | 3900/4900 r/min | 3900/4900 r/min | 3900/4900 r/min |
Main saw shaft diameter | 30 mm | 30 mm | 30 mm |
degree of saw blade | 90° | 90° | 90° |
Main motor power | 4/5.5 kw | 4/5.5 kw | 4/5.5 kw |
Scratch saw diameter | 120 mm | 120 mm | 120 mm |
Speed of scribble saw | 8000 r/min | 8000 r/min | 8000 r/min |
Diameter of auxiliary saw shaft | 22 mm | 22 mm | 22 mm |
Submotor power | 0.75/1.1 kw | 0.75/1.1 kw | 0.75/1.1 kw |
Weight | 800 kg | 810 kg | 820 kg |
Saw blade can be tilted, not only can cut right angle, but also can effectively cut 0-45 degree. It is used for solid wood furniture, soft package and so on.
It can only cut right angle and be used for producing panel furniture cabinets, wardrobes and construction industries.
Note: The length of the pusher is 2.8 m, 3.0 m and 3.2 m, and the effective length is reduced by 10 mm.
The aluminum alloy surface which is oxidized ensures the cutting accuracy, beautiful and durable.
Reverse blade design, stable and safe.
It ensures the stable operation of the machine.
It adopts thickening fixed design which can adjust the distance, safe and durable.
Dual-layer safety design of vacuum cleaner and main power interface make you not need to worry about leakage and disconnection.
Humanized dust removal brush, convenient and fast.
Machine adopts standard European guiding ruler which is strong and durable. All just for accuracy.
The machine is equipped with standard vacuum interface which can directly connect vacuum cleaner, more convenient and fast.
The world bearing brand NSK is adopted to effectively reduce operating noise and prolong machine life.
Packaging | ||
Size | 3260 (L) * 1120 (W) * 1270(D) | |
Weight | 800 kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). | |
