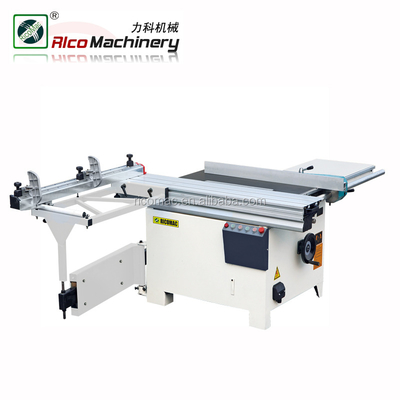

Sliding Table Saw MJ6116ZA
Main Characteristic:
V type straight rail with steel ball
New-designed anti-dust cover
Max. adjustable angle of main saw blade: 90º
Max.planning length is 1600mm
Advantage:
1. Movable table guide track is chrome plated round stick.Plating chromium steel balls structure with high rating accuracy, exact and durable. Guide track is optional.
2. Made of high-strength extruded aluminum alloy, movable table is high in strength and will not bend.
3. With oxidation treatment, movable table surface is beautiful and hardwearing.
4. We make the machine aggravating in order to improve equipment stability and is much heavier than ordinary ones and running more stable.
5. The saw axis is equipped after two dynamic balances so it is much more life-saving.
6. High precision and can reach 0.005mm. And the cutting surface is smoother without jagged.
7. The machine base is Gantry-milled, in order to improve the stability of the sliding table.
8. Our special saw blade has 96 saw teeth. So it can cutting panel smoother.
9. The electrical devices are sealed so it is durable and is not easy to damage.
Spec.
| Model | MJ6116ZA | Scoring saw spindle speed | 8800rpm |
| Max.working length | 1600mm | blade saw tilt angle | 45 |
| Max.working thickness | 65mm | Main saw motor power | 4kw |
| Main saw blade size | 305*30mm | Scoring saw motor power | 0.75kw |
| Scoring saw blade size | 100*20mm | Overall dimensions | 1600x3300x900mm |
| Main saw spindle speed | 4000/5000rpm | Net weight | 610kgs |
