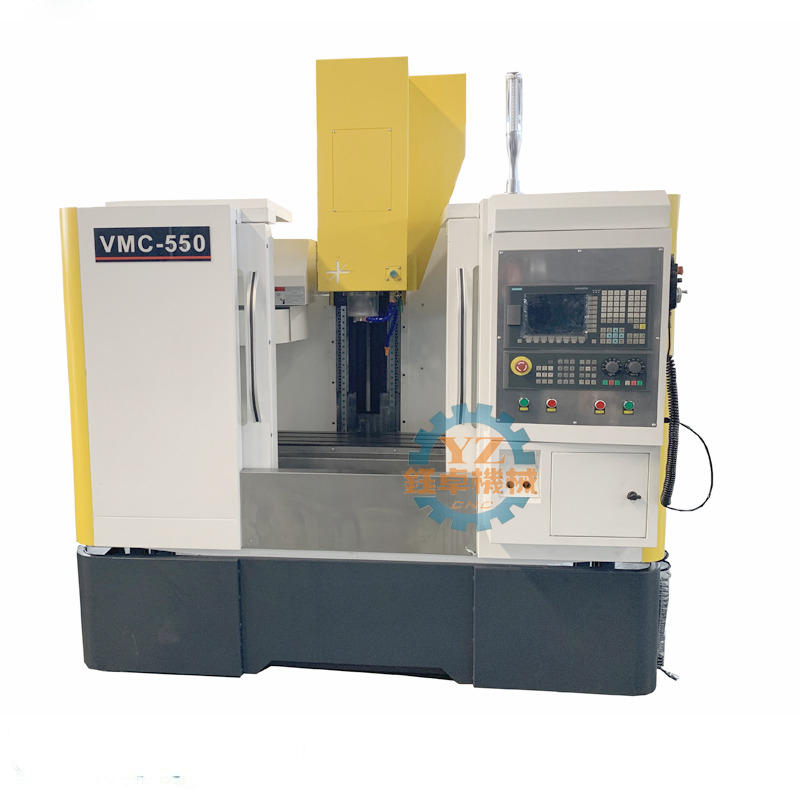

VMC550 Vertical CNC 5 axis Machine And Machining Centre
Machine specification
|
Item |
|
Unit |
VMC500 |
|
Travel |
X axis |
mm |
550 |
|
Y axis |
mm |
260 |
|
|
Z axis |
mm |
450 |
|
|
Spindle nose to table |
mm |
90-490 |
|
|
Feed |
X Y Z rapid feed |
m/min |
20 |
|
Cutting feed |
mm/min |
1-6000 |
|
|
Table |
Table size |
mm |
800X260 |
|
Max.load |
kg |
450 |
|
|
T slot |
mm |
3-16-80 |
|
|
Spindle |
Speed |
rpm |
8000 |
|
Spindle bore |
mm |
120 |
|
|
Spindle taper |
|
BT40 |
|
|
Main motor |
kw |
3.7 |
|
|
Accuracy |
Positioning Accuracy |
mm |
0.005/300 |
|
Machine |
Size( L W H) |
mm |
2150x1700x2050mm |
|
|
Weight |
kg |
1800kg |
Standard Configuration
With GSK 25i CNC controller/ KND1000 CNC
With 16 Funnel type tool changer.
Spindle :Taiwan POSEN / VOLIS brand
BT40 / 120 precision spindle unit,8000rpm speed
Three axis linear guide Taiwan HIWIN
Ball screw Taiwan HIWIN
Three-axis rail protection
Intermittent lubrication system
Cooling system,With water pump
Full protection of sheet metal system
380v 50hz 3phases
Optional Configuration
FANUC, SIEMENS,SYNTEC CNC Controller
4th axis, 5 th axis device
spindle speed 10000-12000rpm
chip conveyor
spindle oil coolant, directly connection
CNC Milling Machine Photos
VMC CNC Machine package
cnc machining center is with wooden case and steel foot, inside machine is with waterproof clothes
