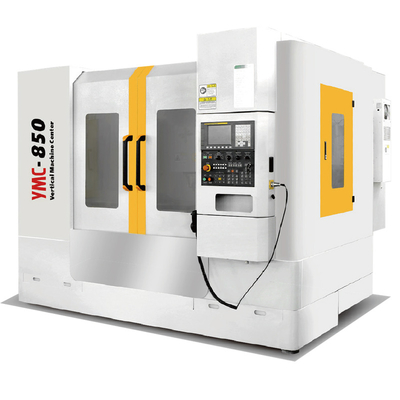

Maxtors High Precision Linear guiderails VMC Vertical CNC Milling Machine Center with travel 800x500x550mm Model YMC-850
| Item | Unit |
YMC-850 |
|
| Travel
|
XYZ Travel |
mm |
800/500/550 |
|
Distance from Spindle Nose to Table |
mm |
105~665 |
|
| Worktable |
Table Size |
mm |
1000×500 |
| Max.Loading on Table | KG | 600 | |
| Spindle |
Spindle Taper |
|
7/24 Taper No.40 |
|
Spindle Speed |
rpm |
8000 |
|
|
Spindle Motor Power |
KW |
5.5/7.5 | |
| Feeding |
Rapid Feedrate(X/Y/Z) |
m/min | 48/48/48 |
|
Cutting Feedrate(X/Y/Z) |
m/min | 10/10/10 | |
| ATC/Tool Magazine | ATC Type | Armless/Arm type | |
| No.of Tools | 12/16/20/24T | ||
| Tools Size(Full Tools) | mm | Φ80/300 | |
| Max.Tool Weight | KG | 8 | |
| Accuracy | Positioning Accuracy | mm | ±0.008/300 |
| Re-Positioning Accuracy | mm | ±0.005/300 | |
|
Others |
Footprint |
mm | 2700×2200 |
| Machine Height | mm | 2700 | |
| G.W. | KG | 5000 | |
|
CNC Controller |
SYNTEC 21MA |
||
CNC Controller: KND/GSK/LNC/SIEMENS/FANUC/Mitsubishi/Heidenhain (Optional)
>>Send Inquiry Get a Discount
2,In stock! Send out within 15 Working days, click "Start Order" and pay directly!
(Input quantity, choose your country, then you can see total price)
Please do write your Name, Address, Zip code and Phone number for delivery!
All Size Available (Others Size will customize accordingly)
| Item(Model YMC) | 650 | 850 | 1160 | 1270 | 1470 | 1580 | 1890 | 2011 | 2511 |
| X Travel(mm) | 600 | 800 | 1100 | 1200 | 1400 | 1500 | 1800 | 2000 | 2500 |
| Y Travel(mm) | 400 | 500 | 600 | 700 | 700 | 800 | 900 | 1100 | 1100 |
| Z Travel(mm) | 480 | 550 | 600 | 650 | 700 | 700 | 850 | 800 | 800 |
| Spindle | BT30/BT40/BT50/HSK-E40/HSK-A63/HSK-A100 | ||||||||
| Spindle Speed(rpm) | 8000~30000 | ||||||||
| CNC Controller | KND/GSK/LNC/SIEMENS/FANUC/Mitsubishi/Heidenhain | ||||||||
I Want The Best Price >> “ Send Inquiry ”
Send Inquiry Here to get a Free ONE STEP Solution for your workpieces machining
Direct Ask Supplier of One-Step Turning & Milling Solutions
More Related Machines Recommendation
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is 1 set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, HEIDENHAIN,LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Regular Machines,We will delivery then within 20 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films. Others packing methods also available.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself.
You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
If you still have any more FAQ, Please feel free to contact us directly.
