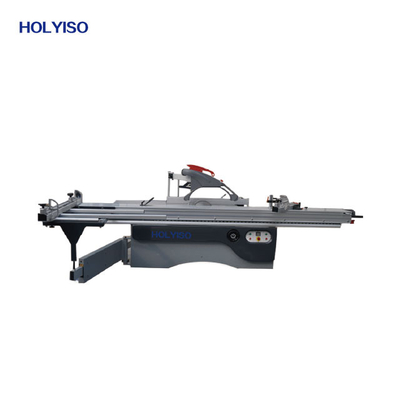

MJ6132TD Sliding Table Saw from Chinese factory
Application:
Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
Feature:
1.Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
2.With oxidation treatment, movable table surface is beautiful and hard wearing.
3.Manual titling and up/down for saw blade.
4.Tilt angles of main and scoring saw blades are displayed directly by precision inclinometer.
Advantages of our products:
1. We make the machine aggravating in order to improve equipment stability and is much heavier than ordinary ones and running more stable.
2. The saw axis is equipped after two dynamic balance so it is much more life-saving and high precision.
3. Movable table guide track is plating chromium steel bars structure,
exact and durable.
4.High precision and can reach 0.05mm.and the cutting surface is smoother without jagged
5. Electrical seal, preventing saw dust and objects from entering.
6.CE and ISO Certificate
|
Dimension of sliding table |
3200*360mm |
Main motor |
5.5kw |
|
Gross cut capacity |
3200mm |
Scoring saw blade diameter |
120mm |
|
Width of cut between saw blade and rip fence |
1250mm |
Speed of scoring saw blade |
8000r/min |
|
Saw blade diameter |
300mm |
Scoring spindle diameter |
20mm |
|
Height of cut (diameter:300mm) |
80mm |
Scoring motor |
1.1kw |
|
Speed of main saw spindle |
4500/6000rpm |
Net weight |
800kg |
|
Main spindle diameter |
30mm |
Gross weight (with wooden package) |
950kg |
|
Tilting saw blade |
45 tilting |
Overall dimensions |
3200x3150x900mm |
